700-1020MHz 14dBi 50 W Yagi directional antenna For signal field
product introduction

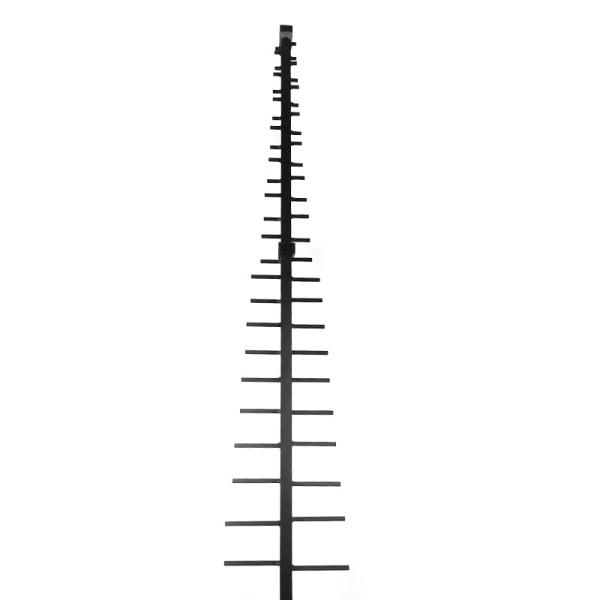

This 700-1020MHZ 14 dbi 50W Yagi directional antenna for signal field ,designed sepcial the shape like a christmas trees, it is wide use in signal communication field .And the product have high gain 14dbi Vswr ≤2. when it working it can support 50W power out put .The connector takes N-K solution compare with traditional antenna this Yagi directional high 131 cm ,almost Child height.Horizontal Beam width55±10º,Vertical Beam width30±10º.it is a super signal transfer directional antenna .
product sepcification
| Electrical Specifications |
| FrequencyRange | 720-1020MHz |
| Gain(dBi) | 14dBi |
| VSWR | ≤2 |
| Polarization | virtical |
| Horizontal Beamwidth(0º) Vertical Beamwidth(0º) | 55±10º 30±10º |
| ovality(dB) | ≤±2dB |
| Input Impedance(Ω) | 50Ω |
| Maximum input power(W) | 50W |
| Inpur connector type | N-K |
| Mechanical Specifications | |
| Dimensionsmm(Height/Width/Depth) | 1310*370*mm |
| Packing size(mm) | 1320*380*mm |
| Antenna weight(kg) | 0.4KG |
| Rated Wind Velocity(m/s) | 31m/s |
| Operational Humidity(％) | 10- 95 |
| Radome Color | black |
| Radome material | aluminium |
| Operating temperature(ºC) | -40～55 º |
| Installution Method | Machine mounting |
Product advantages
- high gain 14DBI directional antenna
- super high Yagi antenna
- wide band 700-1020antenna
- Aluminium material waterproof and high efficiency signal transfer
FAQ
Who we are?
Shen zhen Texin electronics co.,Ltd is a electronic communication type company which developed 2014,it has over 10 years in this field ,we sales WIFI signal reapeter and anti drone jammer ,most products can be customized .
How many assemblies you have in your factory ?
TeXin factory has over 9 assemblies in our over 5000sqm 2 floor factory in Long area, Shenzhen city.
Do you have the engineer for the technical support when you are making the after sales service ?
TeXin engineer team can directly offer the customers with the techinical support online anytime customer need it.
How can i be a your distributor in our own country ?
For the TeXin distribution authorization,we can definitely offer it for some customer after the details negotiation, it depends on the real situation of each side.
