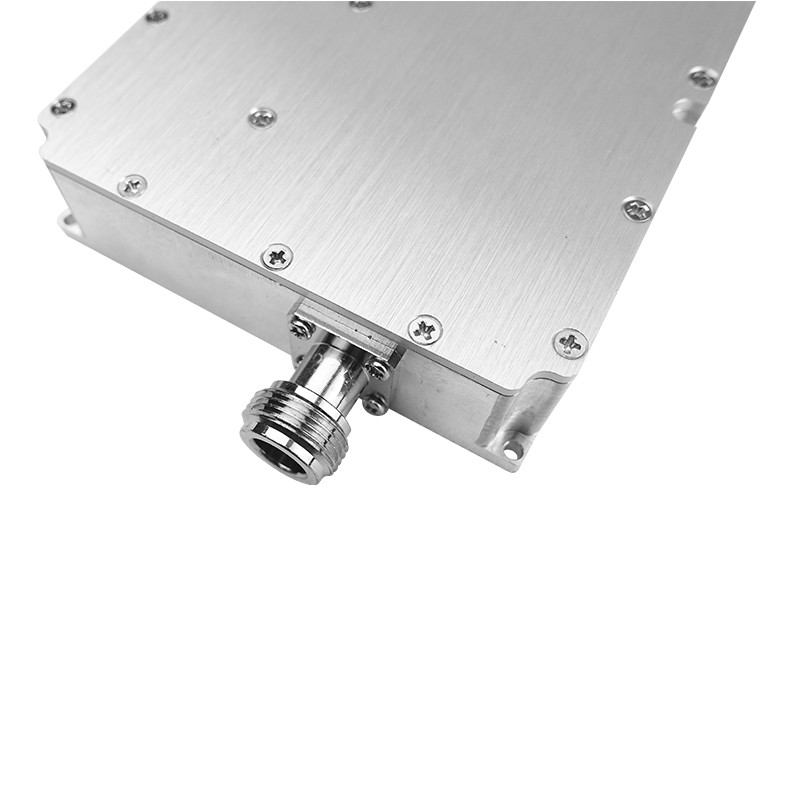

High power 100W aluminium jammer module for air protection
product Introduction
The 100W high power aluminium wide 91MM using aluminium out shell ,strong heat resistance .And the jammer module takes circle protection ,light weight 765g it is easy to carry .Two electric wire with one of enable wire ,and when it under 28v the current support 10A,it can work at -40~+65℃ .
Specification
| No. | Item | Data | Unit |
| 1 | Frequency | 400-2700 | MHz |
| 2 | Test voltage | 28 | V |
| 3 | Current | 10 | A |
| 4 | Output | 100 | W |
| 5 | Gain | 50 | dB |
| 6 | Output stability | 1 | dB |
| 7 | Connector | N / male |
| 8 | Output connector VSWR | ≤1.30 (No power and VNA test) |
| 9 | Power supply wire | Red+Black+Enable wire |
| 10 | Enable Control | High ON Low Off |
| 11 | Out shell Size | 175*91*24 | mm |
| 12 | Mount hole | 86*171 | mm |
| 13 | Weight | 765 | g |
| 14 | Work Temperature | -40~+65 | ℃ |
| 15 | Out shell material | Aluminum |
| 16 | Vibration need | Car load OK |
Features
Attention
- Use it before need test
- when you connect power supply must related antenna
- when you installed seperate close band module
- when the out put power over high must matching cooling device
FAQ
Are you a anti drone module and jammer manufacturer?
Shenzhen TeXin Electronic Co., Ltd. is over 10 year history in China, we self develop and produce the high tech and professional anti drone module,anti drone signal jammer and the drone detector, we offer the antenna, heat sink, power supply too.
What is the customized frequency range and output power of the anti drone jammer module?
TeXin anti drone module is usually 5W to 300W output customized with frequency range 100MHz to 6300MHz, and the usual band width is about 200MHz, for example, 2300-2500MHz; we can customize them according to customer specific need if not in those range.
Can you show us the test photo and video of the FPV jammer module after we buy them?
yes, TeXin will take the photo and video of sample and mass production assembly and test before delivery as customer need.
